Panoramic-vision dispensing systems use feature-matching positioning and support 3-, 4- or 5-axis configurations. Image-based programming replaces complex teach-point workflows with intuitive path definition, supporting high-mix, low-volume production. The Linux-based platform includes upstream and downstream conveyor communication and supports both SMEMA and HERMES.

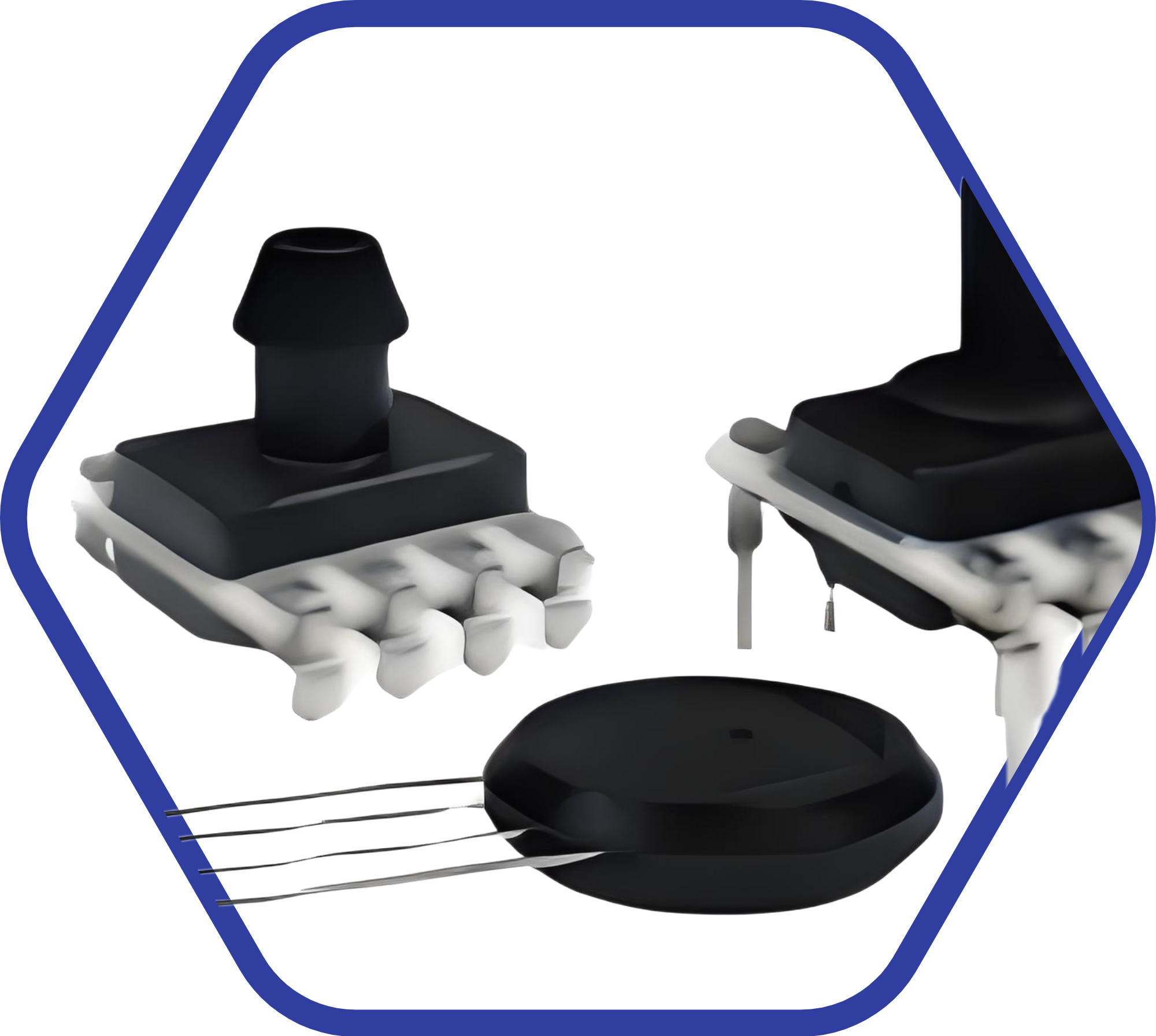

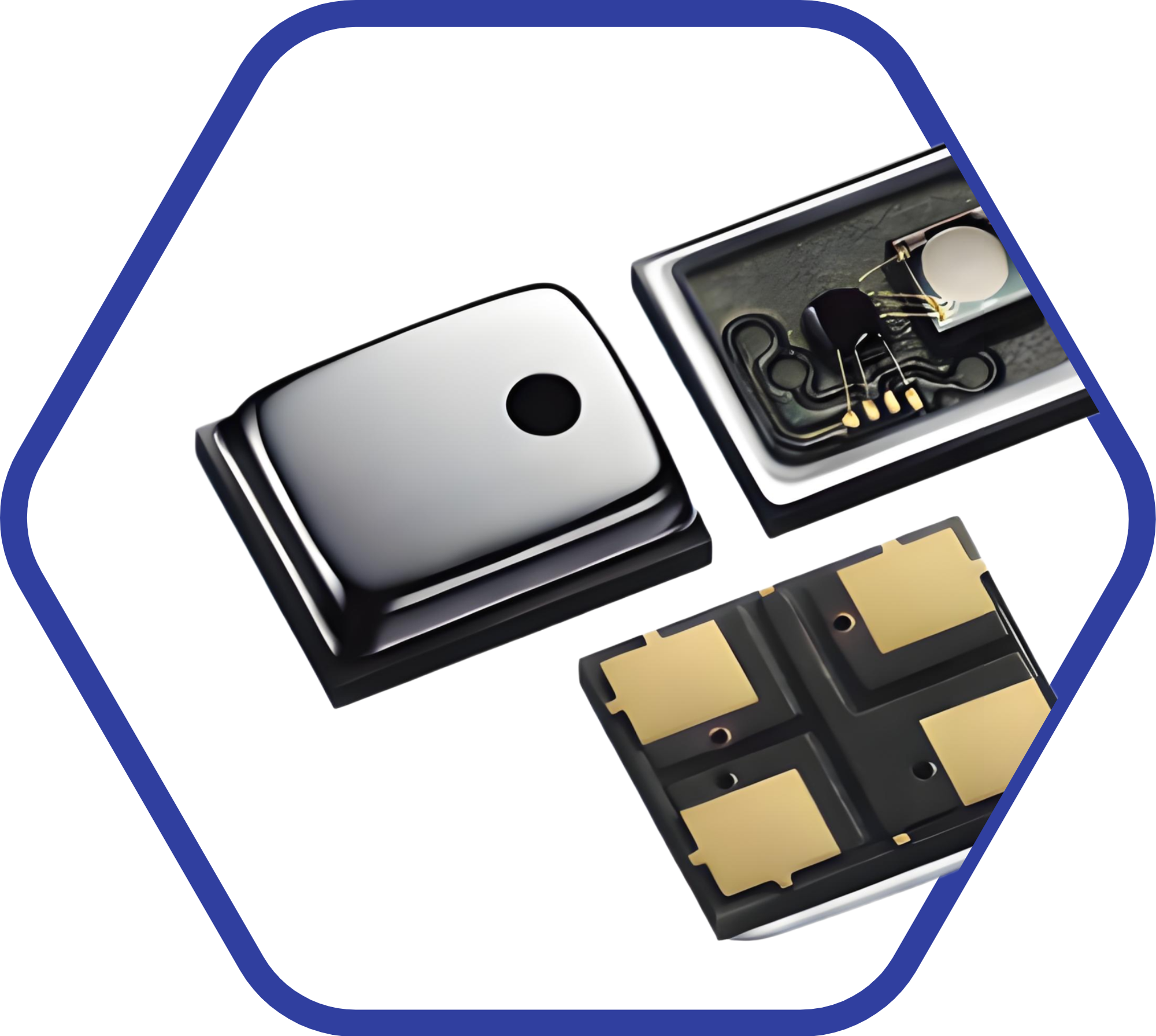

Designed for discrete-device packaging, particularly ASIC encapsulation and precision solder-paste application in MEMS processing. Supported package formats include leadframe, substrate, and shell-and-case packages. Applications include chip coating, solder-paste application, potting, component reinforcement and underfill.
Product Features
1. High-performance vision positioning based on fiducial shape features.
Handles different shapes and lighting conditions; printed markings can be selected as fiducials.
Single-fiducial positioning is supported in suitable demanding applications.
2. Image-based programming provides direct, visual path definition, simplifying precision-dispensing setup and improving programming efficiency.
3. VMotion motion control with a 1 ms control cycle.
High-speed, precise control with extensibility for customized functions.
Position-compare output and equally spaced corner output support accuracy and consistency during high-speed dispensing.
4. On-the-fly inspection.
Rapid inline inspection of dispensing results; the source reports a 1–2× inspection-efficiency improvement with on-the-fly imaging.
5. Industrial communication support.
Supports SCADA, HERMES, SECS/GEM and customized MES integration.
6. Mixed-product production.
Multiple products can run on the same line, reducing changeovers in high-mix, low-volume production.
Technical Specifications
| Category | Item | G400-F3C Series | |
| Configuration | Configuration | 3-axis (clean-environment configuration) | |
| Installation | Inline rail conveyor integration | ||
| Dispensing materials | Adhesive, solder paste, silver paste and more | ||
| Valve configuration | Single valve | Adjustable dual valves | |
| Dispensing Parameters | Dispensing travel | Single lane: 350 × 450 mm Dual lane: 350 × 210 mm | Single lane: 150 × 450 mm (individual board / panel size) Dual lane: 150 × 210 mm (individual board / panel size) |
| Maximum component height | Board clearance: 30 mm | ||
| Minimum solder-paste dot diameter | Minimum solder-paste dot diameter: 0.15 mm | ||
| Minimum adhesive dot diameter | Minimum adhesive dot diameter: 0.2 mm (strongly dependent on adhesive properties) | ||
| PCB edge clearance | ≥4mm | ||
| Conveyor System | Board flow direction | Left to right (standard); right to left (optional) | |
| Conveyor height | 900±20mm | ||
| Conveyor width adjustment | Software-controlled width adjustment | ||
| Weighing accuracy | 0.1mg | ||
| Conveyor speed | 2-24m/min | ||
| Control and Motion System | Control architecture | Motion, vision, dispensing and application software controlled by one industrial PC | |
| Dispensing software | Integrated software running on Linux | ||
| Programming | Image-based and offline programming | ||
| Communication protocols | SCADA, HERMES, SECS/GEM and other industrial protocols; customized MES integration available | ||
| Maximum acceleration | 1.5/2.0g | ||
| Repeatability | ±0.005 | ||
| Drive system | Servo drive + linear motor | ||
| Vision System | Camera | 1.3 MP industrial camera | |
| Illumination | Multicolor, multifunction combined illumination | ||
| Vision System | Integrated vision system | ||
| Dimensions & Utilities | Dimensions and weight | L860 × W1280 × H1900 mm (H1620 mm excluding filtration system) Approximately 1,050 kg | |
| Power supply | 2.5 kW, AC220 V, 50 Hz (without conveyor heating) | ||
| Air supply | 0.6Mpa | ||
| Other | Options | Board loader/unloader | |
| Barcode reading | |||
| Dual lane | |||
| Dispensing inspection | |||
Confirm the exact model, board dimensions, material, valve arrangement and process acceptance criteria with JCX before ordering.
