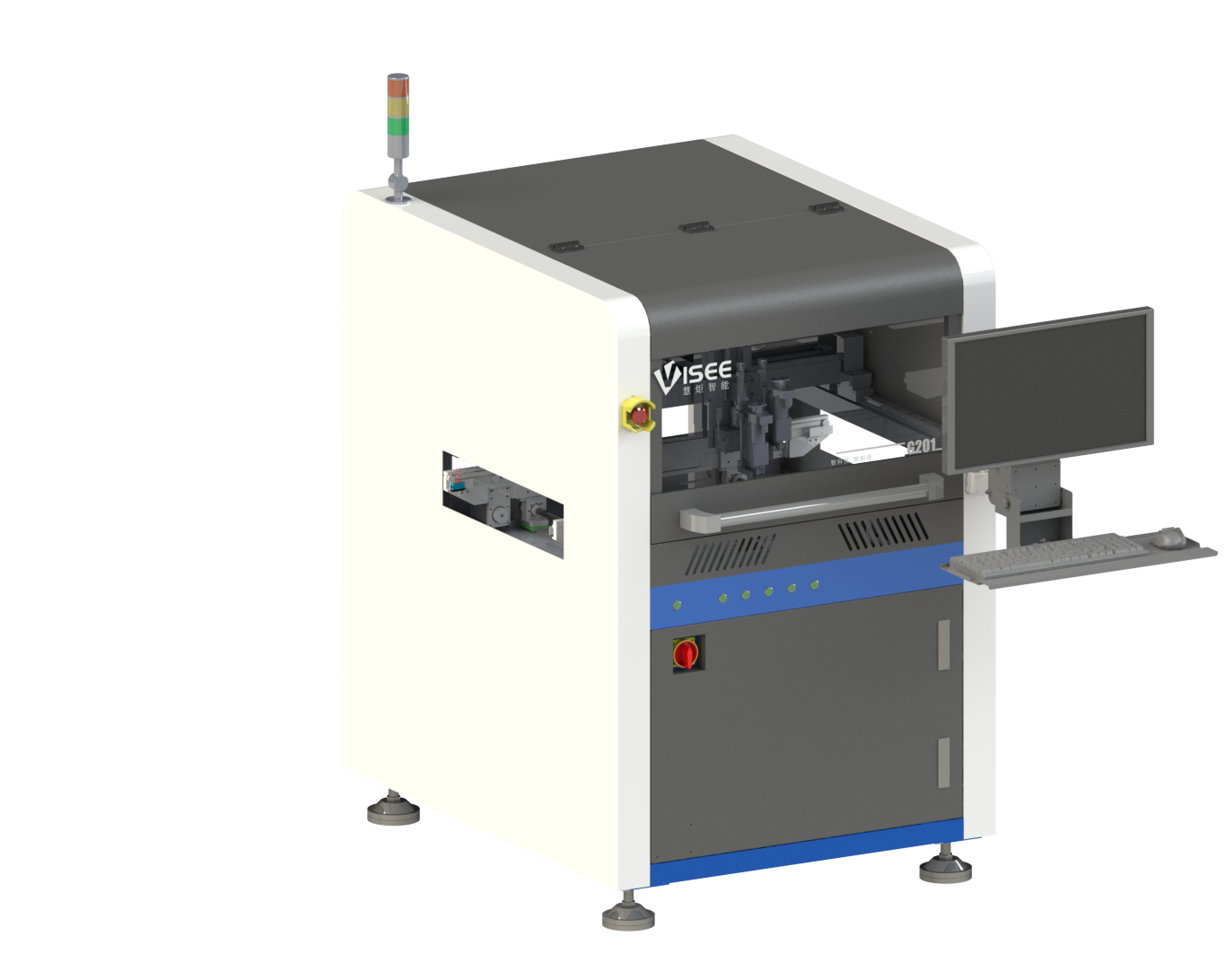

This compact, high-performance dispensing family supports precision applications on different PCB sizes. An intuitive interface and integrated hardware/software architecture support stable operation. Applications include chip packaging, PCB assembly, SMT adhesive dispensing and medical products. Product configuration and process support can be selected to suit development, production and manufacturing requirements.
Product Features
Small-area recognition and positioning enable precise vision alignment and image-based programming.
Non-contact jetting supports smaller dots and a wider range of applications.
Integrated system software simplifies operation and programming.
Automatic board recognition, program selection, data recording and production statistics.
Process Applications
Underfill
Lead encapsulation
Surface mounting
Package-on-package (PoP)
Dam and fill
Red adhesive, solder paste and silver paste dispensing
FPC component reinforcement
Surface sealing
Dispensing Specifications
| Category | Item | G201-F3 | G201-F5 | G201-F3L | G400-F3 |
| Configuration | Configuration | 3-axis | 5-axis | 3-axis, large-format | Linear-motor configuration |
| Installation | Inline rail conveyor integration | ||||
| Specification | Dispensing travel | 500*400*50(mm) | 500*400*50(mm) | 900*600*50(mm) | 500*400*50(mm) |
| PCB thickness | 0.5-7mm | ||||
| Programming | Image-based programming | ||||

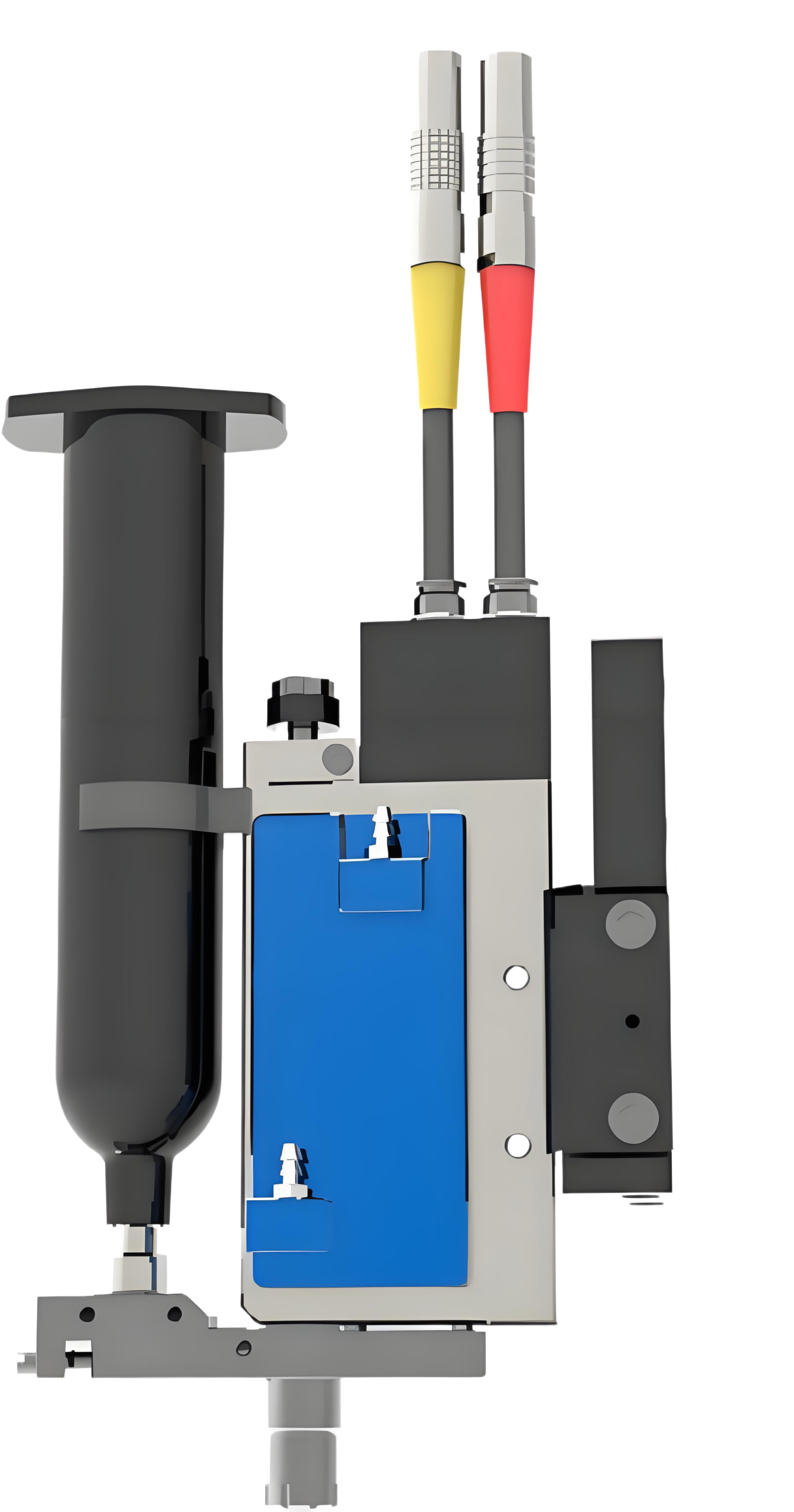

| Valve type | Piezoelectric valve / precision screw valve / pneumatic jetting valve | ||||
| Repeatability | ±0.02mm | ||||
| Maximum speed | 1000mm/s | 800mm/s | 800mm/s | 1300mm/s | |
| Maximum acceleration | 1.0G | 1.0G | 1.0G | 1.5G | |
| Drive system | Servo drive | X/Y: linear motors | |||
| Conveyor height | 900±50mm | ||||
| Conveyor load capacity | 3KG | ||||
| Conveyor width adjustment | 50-400mm | 50-400mm | 50-600mm | 50-400mm | |
| Communication protocols | SCADA, HERMES, SECS/GEM and other industrial protocols; customized MES integration available | ||||
| Vision | 6 MP high-precision industrial camera | ||||
| Options | Pressure booster pump | ||||
| Industrial barcode reader | |||||
| Microbalance (0.1 mg) | |||||
| Bottom return conveyor | |||||
| Laser height measurement | |||||
| Dual-lane transport | |||||
| Dual-valve mechanism | |||||
| UPS | |||||
| 2D inspection of stray dots, missing deposits, excess/insufficient adhesive, stringing and bead width | |||||
| 3D inspection of bead width, height and other dimensions | |||||
| Dimensions & Utilities | Dimensions and weight | (L*W*H) 910*1300*1600 650kg | (L*W*H) 910*1300*1600 650kg | (L*W*H) 1400*1500*1600 850kg | (L*W*H) 1000*1300*1600 750kg |
| Conveyor height | 900±50mm | ||||
| Power supply | 10A,AC220V,50Hz | ||||
| Air pressure | 0.4-0.7Mpa | ||||
Confirm the exact model, board dimensions, material, valve arrangement and process acceptance criteria with JCX before ordering.
