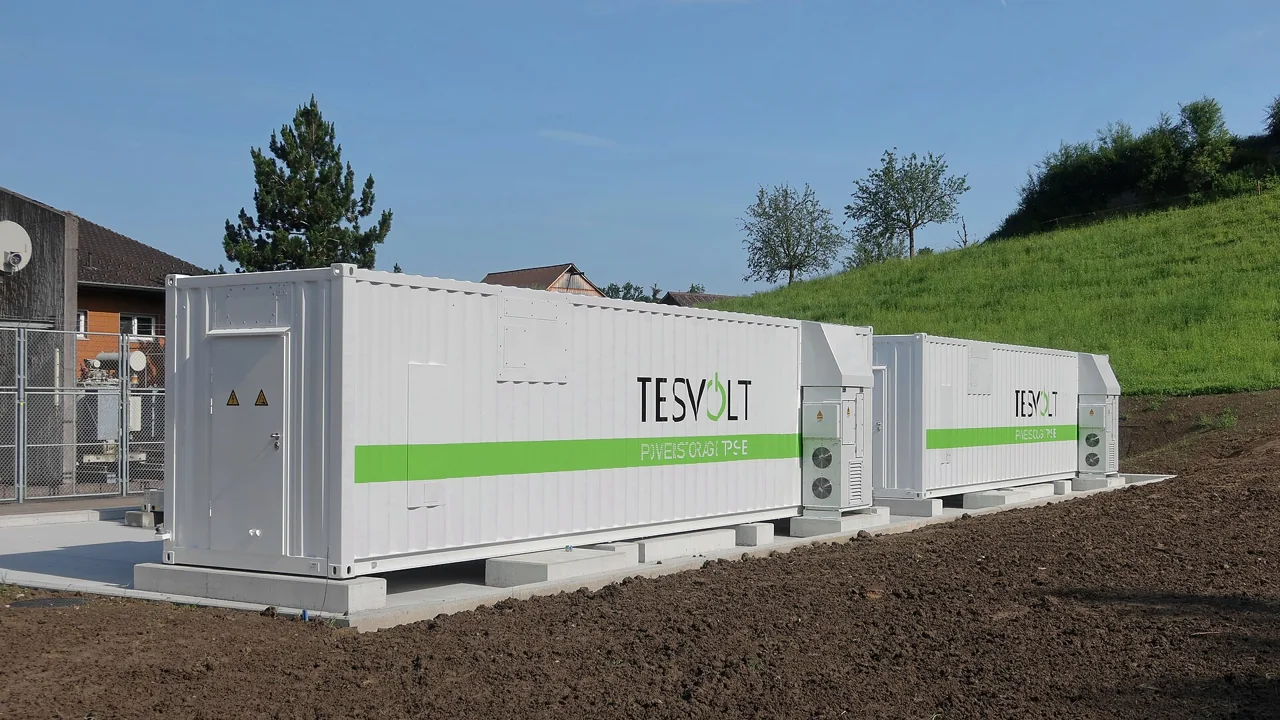

New Energy & Energy Storage
Assembly, inspection and protective coating for energy-storage controls and power electronics.
Typical Applications
- Battery-management and energy-storage control boards
- Power-conversion and inverter electronic assemblies
- Charging, monitoring and renewable-energy control modules
Process Planning
01 · Map the board and environment
Review larger boards, heavy components, board support and the operating conditions of the finished electronic assembly.
02 · Plan inspection coverage
Define solder-joint and component inspection priorities, traceability and acceptance criteria for each board family.
03 · Review protective processes
Plan selective coating, dispensing and connector keep-out areas using the specified materials and customer validation requirements.
What to Share With JCX
- PCB size, weight, component height and handling requirements
- Coating coverage, keep-out drawings and material datasheets
- Inspection priorities, traceability and validation requirements
Equipment and process configuration are reviewed against your drawings, materials, samples and acceptance criteria.
Equipment to Evaluate
Use these configurations as starting points for an application review. Click a product card to read its specifications and options.
Match the Process to the Configuration
| Process | Model to review | Starting point | Confirm before selection |
|---|---|---|---|
| BMS / power-control PCB protection | G210-F3 Series | Review selective conformal coating for the control-board layout. | Define coating, keep-out areas, cure and environmental acceptance tests. |
| Local bonding and sealing | G201-F3 | Evaluate controlled material application on compatible electronics. | Confirm material rheology, filler content and required deposit volume; bulk pack potting needs a separate system review. |
| Control-board assembly inspection | Venus 510 3D AOI | Review visible components and solder joints. | Confirm board envelope and coverage; electrical safety and battery validation remain separate. |
These routes focus on electronics and control boards. Cell welding, battery filling, battery-pack end-of-line tests and high-volume two-component potting are outside the assumed scope.
Plan Your Application With JCX
Share your product drawings and process requirements so we can discuss the equipment configuration and next steps.
