Vision Positioning for Precision Earphone Dispensing

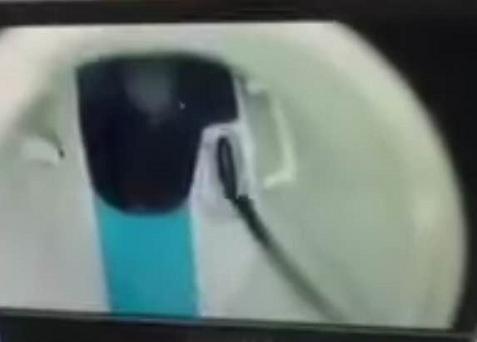

An approximately 1 mm-long oval component inside a wireless earphone requires precision adhesive application. A camera locates the component and supplies coordinates to the dispensing motion system.
The target is a small, irregular feature in a restricted internal area. The source specifies a positioning requirement of 0.01 mm.
The specified configuration is a VS2 vision controller, an MV-GEC2000C camera with a 1-inch, 20 MP sensor, coaxial illumination and a coaxial optical lens.
